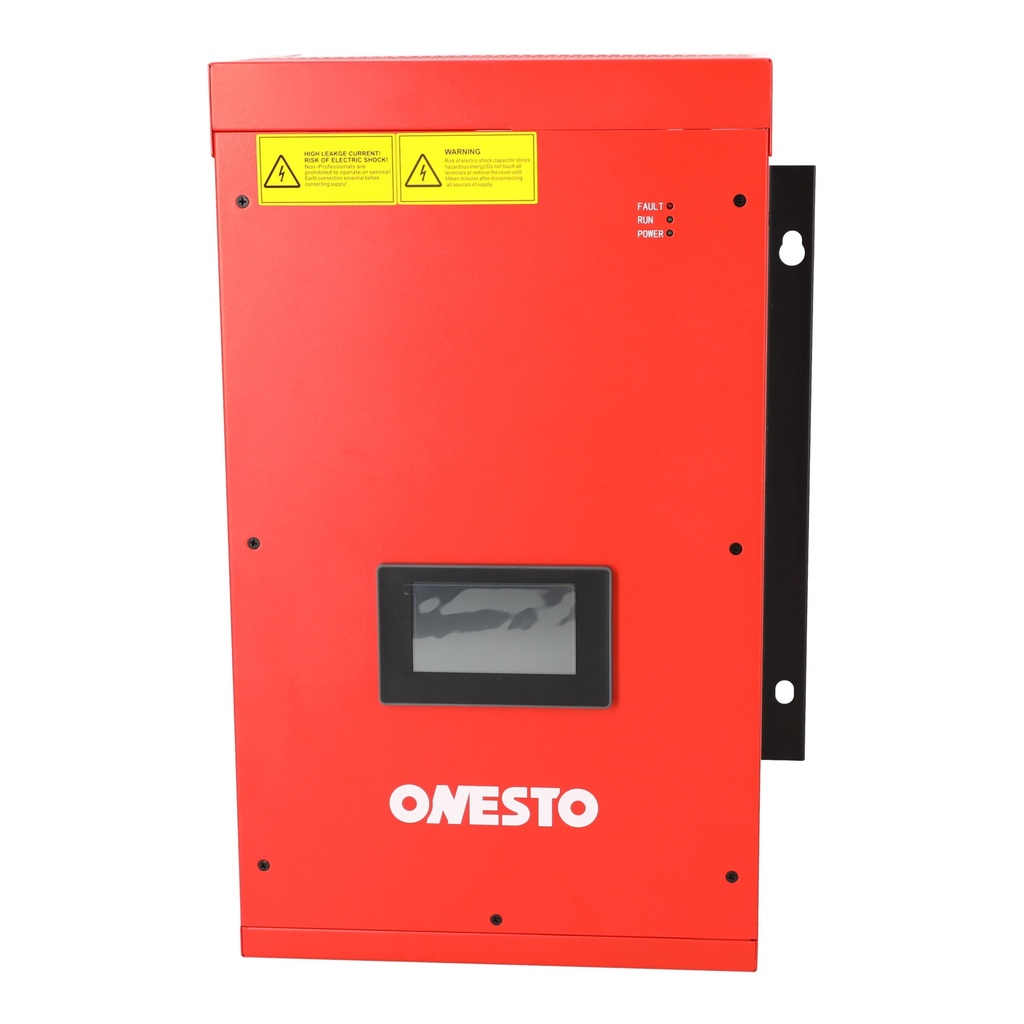

The SVG 100 kVAr 400 V, 3-phase reactive power compensator, model KE-SVG4-100/0.4B, is an advanced modular device for compensating inductive and capacitive reactive power. A single module replaces traditional capacitor banks, simplifying installation and reducing the space required in the switchboard.
The SVG 100 kVAr compensator has a very short response time — below 10 ms — allowing it to dynamically adjust the power factor to the current network load. The device is designed for low-voltage networks from 200 V to 800 V. It is an optimal solution for large industrial facilities, shopping centres and manufacturing plants with significant reactive power compensation requirements.
Technical data
- Model: KE-SVG4-100/0.4B
- Power: 100 kVAr
- Rated voltage: 400 V
- Number of phases: 3
- Response time: below 10 ms
- Network voltage range: 200–800 V
- Enclosure colour: red
Applications
- Compensation of inductive and capacitive reactive power
- Dynamic power factor regulation
- Low-voltage networks from 200 V to 800 V
- Industrial facilities, shopping centres and manufacturing plants
Packaging
- Units per package: 1
Safety information
1. Use the compensator only in low-voltage networks from 200 V to 800 V.
2. Install the device in accordance with the manufacturer instructions.
3. Do not exceed the maximum power of 100 kVAr to avoid damage to the device.
4. The device requires a 400 V supply; ensure that the installation meets this requirement.
5. In the event of a fault or damage, do not repair the device yourself — contact a qualified service technician.
6. Protect the device from moisture and extreme temperatures; do not use it in an environment unsuitable for electronic equipment.
| ogólna | |
|---|---|
| Brand | Onesto |
| Others | |
| Communication | CAN, Modbus RTU, RS485, WiFi |
| Warranty [months] | 24 |
| Mounting | Wall-mounted |
| Voltage [V] | 400 |
| Response time [ms] | ≤ 10 |
| Protection rating | IP20 |
| Cooling | Forced-air |
| Power [kVAr] | 100 |
